Franconia in Grafton County, New Hampshire — The American Northeast (New England)

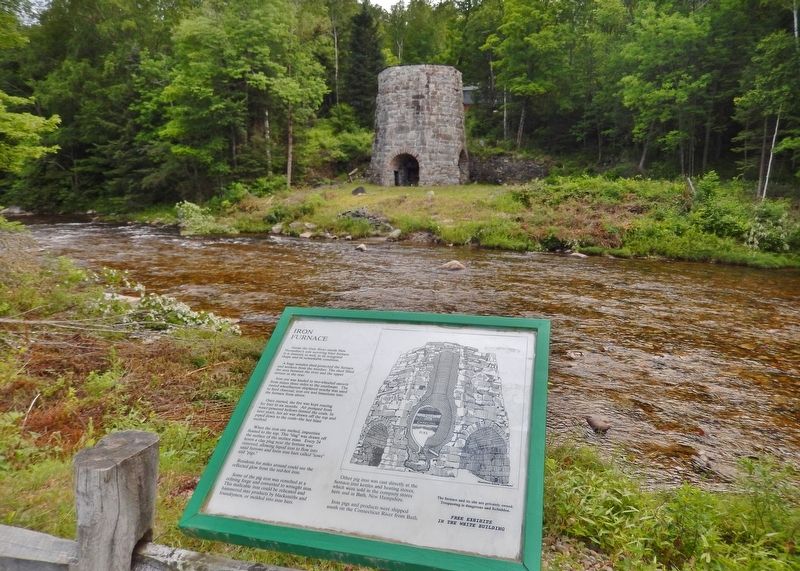

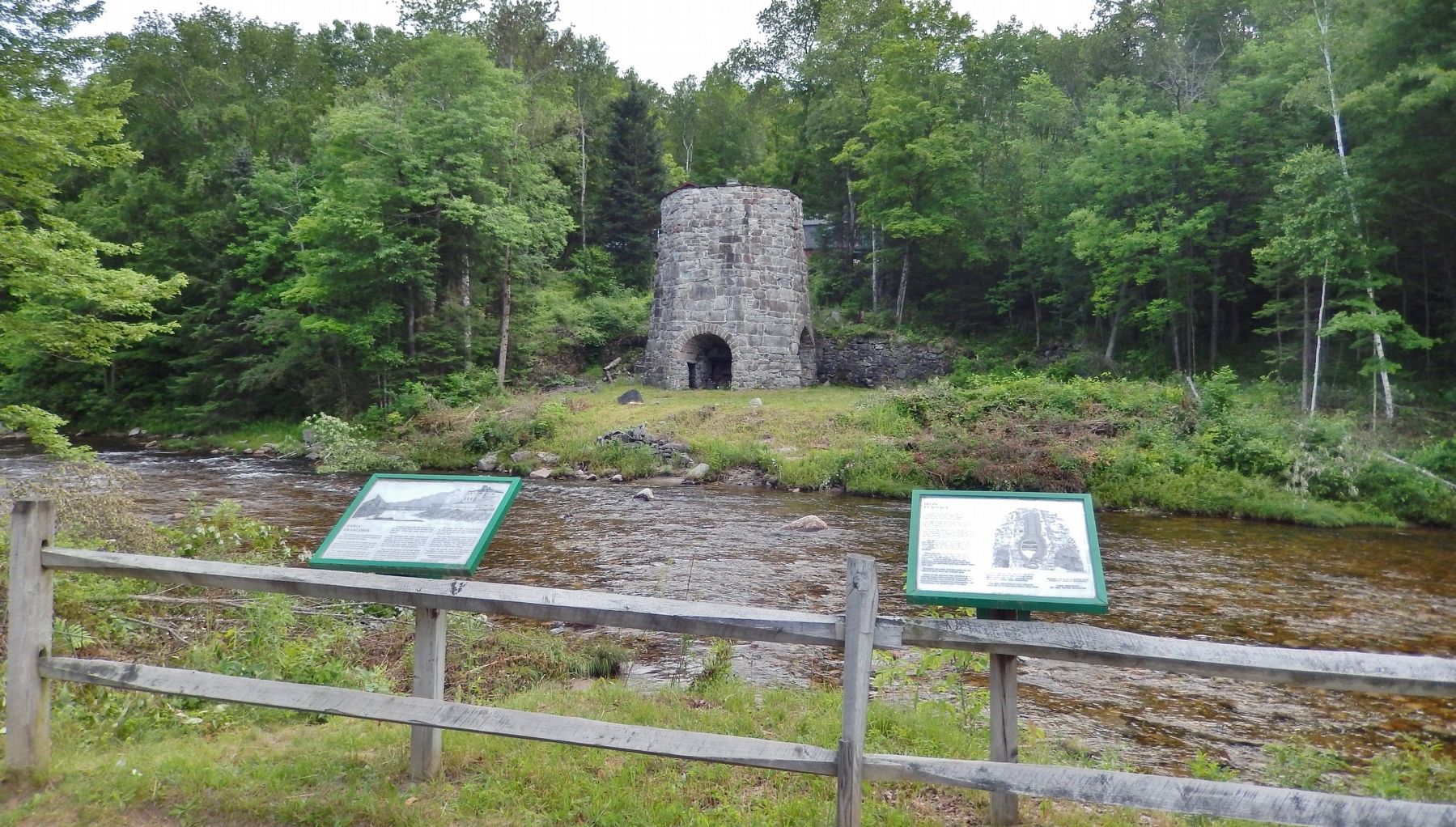

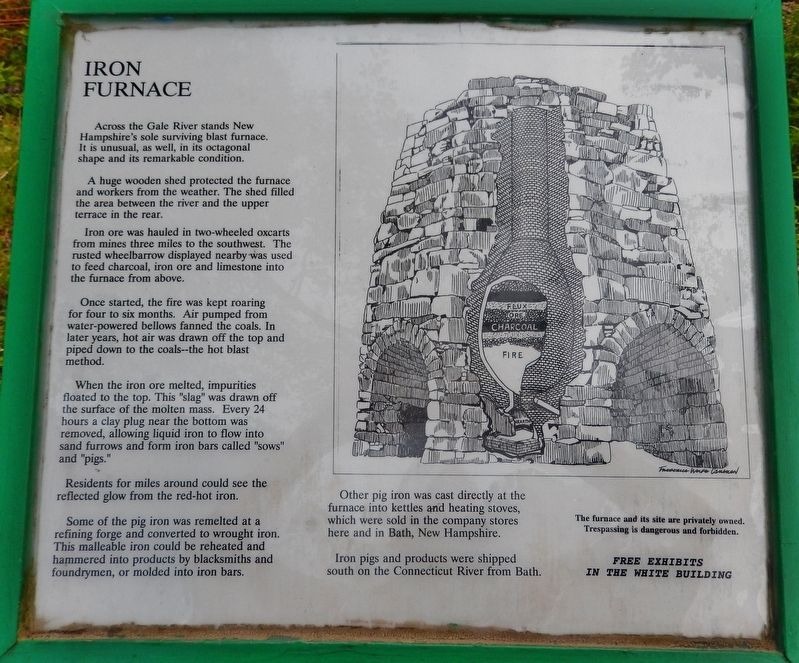

Across the Gale River stands New Hampshire's sole surviving blast furnace. It is unusual, as well, in its octagonal shape and its remarkable condition.
A huge wooden shed protected the furnace and workers from the weather. The shed filled the area between the river and the upper terrace in the rear.

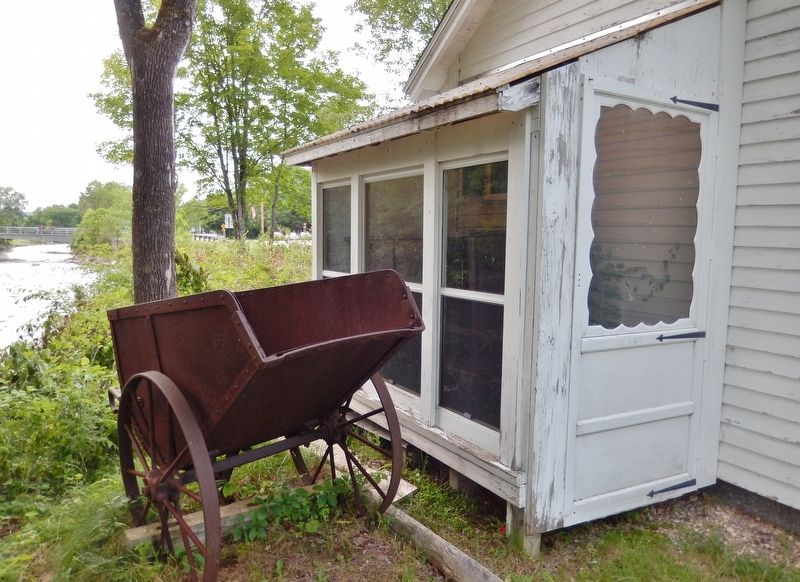

Iron ore was hauled in two-wheeled oxcarts from mines three miles to the southwest. The rusted wheelbarrow displayed nearby was used to feed charcoal, iron ore and limestone into the furnace from above.
Once started, the fire was kept roaring for four to six months. Air pumped from water-powered bellows fanned the coals. In later years, hot air was drawn off the top and piped down to the coals – the hot blast method.
When the iron ore melted, impurities floated to the top. This "slag" was drawn off the surface of the molten mass. Every 24 hours a clay plug near the bottom was removed, allowing liquid iron to flow into sand furrows and form iron bars called "sows" and "pigs."
Residents for miles around could see the reflected glow from the red-hot iron.
Some of the
Other pig iron was cast directly at the furnace into kettles and heating stoves, which were sold in the company stores here and in Bath, New Hampshire.
Iron pigs and products were shipped south on the Connecticut River from Bath.
Erected by Iron Furnace Interpretive Center and Franconia Area Heritage Council.
Topics and series. This historical marker is listed in these topic lists: Industry & Commerce • Man-Made Features. In addition, it is included in the Appalachian Iron Furnaces series list.
Location. 44° 13.802′ N, 71° 45.287′ W. Marker is in Franconia, New Hampshire, in Grafton County. Marker is on Main Street (New Hampshire Route 116) 0.1 miles south of Sugar Hill Road (New Hampshire Route 117), on the left when traveling north. Marker is located in a small roadside park, on the west side of the highway, overlooking the Gale River and the subject iron furnace ruins. Touch for map. Marker is in this post office area: Franconia NH 03580, United States of America. Touch for directions.
Other nearby markers. At least 8 other markers are within 5 miles of this marker, measured as the crow flies. Early Franconia (here, next to this marker); 1889 Iron Bridge (a few steps from this marker); Stone Iron Furnace (within shouting distance of this marker); First Ski School in America (approx. ¾ mile away); Willowdale Settlement (approx. 4.4 miles away); Angel of the Mountains (approx. 4.7 miles away); Sinclair Lodge (approx. 4.7 miles away); Site of Sinclair Hotel (approx. 4.8 miles away). Touch for a list and map of all markers in Franconia.
Related markers. Click here for a list of markers that are related to this marker. Besaw Iron Furnace Interpretive Center
Also see . . .
1. The Only Blast Furnace Still Standing in New Hampshire.
The octagonal stone stack that is visible on the far bank of the Gale River is all that remains of a 200-year-old iron smelter shown on an 1805 map of Franconia. The New Hampshire Iron Factory Company rebuilt the original furnace several times, adding hot blast after 1840 and extending the height to its present 32ft. Chiseled into one of the heavy stones in the west arch opening is "S. Pettee, Jr. 1859". Pettee was a well-known iron master who was associated with several blast furnaces in New England. He was the last known foreman to operate this (Submitted on April 15, 2018, by Cosmos Mariner of Cape Canaveral, Florida.)
2. The Iron Works and The Mines in Franconia.
The stone furnace that remains in Franconia today, can trace its ancestry back to 1801 or 1802 when an iron forge was built there. It was owned by three men and in 1805, through a variety of transactions, the New Hampshire Iron Factory Company was incorporated. This operation became known as the “Lower Works” after the incorporation of the second company, known as the Haverhill and Franconia Iron Works. That company became known as the “Upper Works”. (Submitted on April 15, 2018, by Cosmos Mariner of Cape Canaveral, Florida.)
3. Franconia Heritage Museum & Iron Furnace Interpretive Center.
The Franconia Iron Furnace is New Hampshire's sole surviving example of a post Revolutionary furnace for smelting local iron ore. The industry flourished during the first during the first half of the 19th century. It produced pig and bar iron for farm tools and cast iron ware, including the famous "Franconia Stoves." (Submitted on April 15, 2018, by Cosmos Mariner of Cape Canaveral, Florida.)
4. Besaw Iron Furnace Interpretive Center.
Today, visitors can see a replica of the original wooden building that housed the furnace. The interpretive center also displays various tools and informational panels about the furnace’s operation. More information and books are available at the Heritage Museum. (Submitted on April 15, 2018, by Cosmos Mariner of Cape Canaveral, Florida.)
