Triple-Expansion Steam Engine

Photographed By Barry Swackhamer, March 4, 2017

1. Triple-Expansion Steam Engine Marker

Inscription. Before you is a 30 ton triple-expansion engine from the steam schooner Wapama, This is the larges artifact rescued from the vessel before it demolition. Inside the visitors center across the street are extensive exhibits and films. There you can see a model of the ship, Wapama's cast iron propeller, and learn more about California's lumber trade.

VESSEL SPECIFICATIONS:
Propulsion - Single propeller, two oil-fired water-tube boilers, 800hp, speed of 10 knots.
Length: 26 feet
Beam: 41 feet
Depth: 16 feet

(Side bar on right)
Wapama was the last of some 225 steam schooners that transported lumber from the Pacific Northwest to California ports. These large wooden vessels replaced sailing schooners like C.A. Thayer (seen further down the pier) and they provided passenger service to the smaller lumber ports like Eureka and Mendocino.

Erected by National Park Service.

Topics. This historical marker is listed in this topic list: Waterways & Vessels.

Location. Marker has been permanently removed. It was located near 37° 48.478′ N, 122° 25.255′ W. Marker was in San Francisco, California

Paid Advertisement

Click on the ad for more information.
Please report objectionable advertising to the Editor.

Click or scan to see
this page online

, in San Francisco City and County. It was in Fisherman's Wharf. Marker could be reached from Hyde Street near Jefferson Street, on the left when traveling north. Touch for map. Marker was at or near this postal address: 2950 Hyde Street, San Francisco CA 94109, United States of America.

We have been informed that this sign or monument is no longer there and will not be replaced. This page is an archival view of what was.

Other nearby markers. At least 8 other markers are within walking distance of this location. Wapama’s Engine (here, next to this marker); Petaluma’s Sternwheel (a few steps from this marker); Lewis Bay Ark (a few steps from this marker); Steam Donkey Engine (a few steps from this marker); The South End Rowing Club (within shouting distance of this marker); Sanitation at Sea (within shouting distance of this marker); The Dolphin Swimming and Boating Club (within shouting distance of this marker); Why Here? (about 300 feet away, measured in a direct line). Touch for a list and map of all markers in San Francisco.

More about this marker. The triple expansion engine is located on Hyde Street Pier just inside the entrance to San Francisco Maritime Nation Historical Park.

Related marker. Click here for another marker that is related to this marker. Updated Marker: Wapama’s Engine

Also see . . .

Triple-Expansion Steam Engine and Marker image. Click for full size.

Photographed By Barry Swackhamer, March 4, 2017

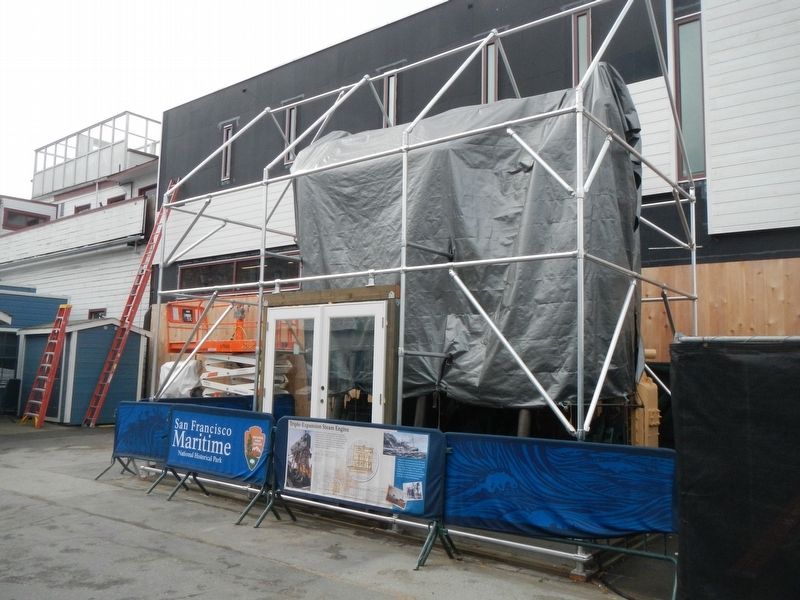

2. Triple-Expansion Steam Engine and Marker

Note: the engine is covered.

1. Marine Steam Engines - Wikipedia. Scroll to the bottom of the article.

A triple-expansion engine is a compound engine that expands the steam in three stages... Multiple-expansion engine manufacture continued well into the 20th century. All 2,700 Liberty ships built by the United States during World War II were powered by triple-expansion engines, because the capacity of the US to manufacture marine steam turbines was entirely directed to the building of warships. (Submitted on March 9, 2017, by Barry Swackhamer of Brentwood, California.)

2. Triple-Expansion Marine Steam Engine (1910) In Slow Motion - YouTube. This video demonstrates a cutaway version of a triple expansion steam engine. (Submitted on March 9, 2017, by Barry Swackhamer of Brentwood, California.)

3. Hot and running... Triple expansion steam engine - SS Jeremiah O'Brien - YouTube. This video shows the operation of the liberty ship Jeremiah O'Brien's triple expansion steam engine. (Submitted on March 9, 2017, by Barry Swackhamer of Brentwood, California.)

4. Wapama (steam schooner). Wapama was a two-masted, 216.91-foot-long (66.11 m) wooden schooner with a 42.33-foot (12.90 m) beam and a depth of 19-foot (5.8 m), net tonnage of 524, but a gross tonnage of 945. The Wapama was constructed
Photographed By National Park Service, September 6, 2013

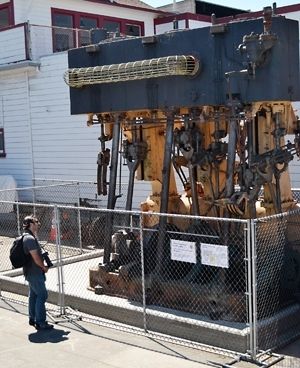

3. The Wapama's Triple-Expansion Steam Engine and Marker
in by St. Helens Shipbuilding Company... The shipyard launched the incomplete Wapama, described as "little more than a finished hull", in a celebration on January 20, 1915. The ship was then towed to San Francisco... (Submitted on March 9, 2017, by Barry Swackhamer of Brentwood, California.)

Additional commentary.
1. Marker replaced
This marker has been replaced with an updated marker.

— Submitted October 8, 2023, by Joseph Alvarado of Livermore, California.

Cross-section of a Triple-Expansion Steam Engine image. Click for full size.

Photographed By Usf

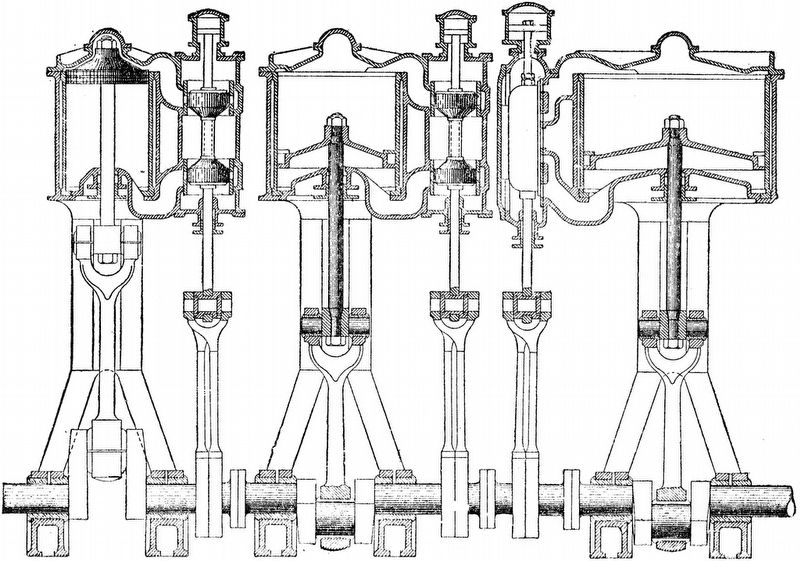

4. Cross-section of a Triple-Expansion Steam Engine

The <i>Wapama</i> circa 1935 image. Click for full size.

Photographed By National Park Service

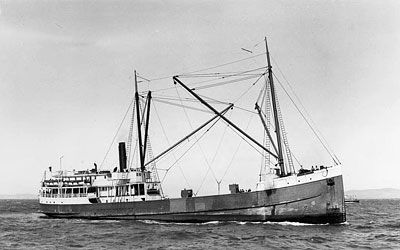

5. The Wapama circa 1935

Photographed By Diane Phillips

6. Triple-Expansion Steam Engine and Marker
