Camden in Kent County, Delaware — The American Northeast (Mid-Atlantic)

The History of the Howell Mill Site

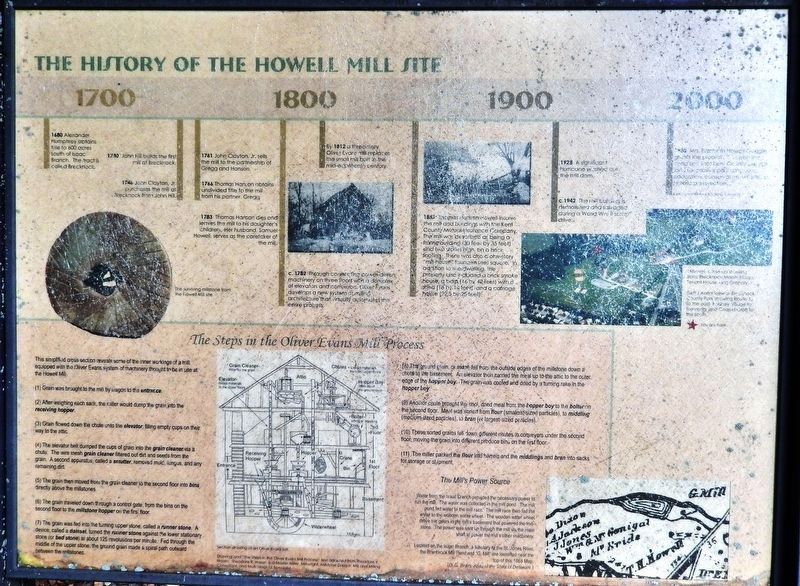

History of the Howell Mill Site Marker image. Click for full size.
Photographed By Cosmos Mariner, September 27, 2015
1. History of the Howell Mill Site Marker
1680 Alexander Humphrey obtains title to 600 acres south of Isaac Branch. The tract is called Brecknock.
1740 John Hill builds the first mill at Brecknock.
1746 John Clayton, Jr. purchases the mill at Brecknock from John Hill.
1761 John Clayton, Jr. sells the mill to the partnership of Gregg and Hanson
1766 Thomas Hanson obtains undivided title to the mill from his partner, Gregg.
1783 Thomas Hanson dies and leaves the mill to his daughter’s children. Her husband, Samuel Howell, serves as the caretaker of the mill.
c. 1782 Through connecting power driven machinery on three floors with a complex of elevators and conveyors, Oliver Evans develops a new system of milling architecture that virtually automates the entire process.
By 1812 a three-story Oliver Evans mill replaces the small mill built in the mid-eighteenth century.
1851 Thomas Hanson Howell insures the mill and buildings with the Kent County Mutual Insurance Company. The mill was described as being a frame building (30 feet by 35 feet) and two stories high, on a brick footing.
Paid Advertisement
Click on the ad for more information.
Please report objectionable advertising to the Editor.
Click or scan to see
this page online
There was also a one-story “mill-house” fourteen feet square. In addition to the dwelling, the property also included a brick smoke house, a barn (16 by 42 feet) with a shed (18 by 14 feet), and a carriage house (22.5 by 25 feet).
1928 A significant hurricane washed out the mill dam.
c. 1942 The mill building is demolished and salvaged during a World War II scrap drive.
1988 Mrs. Elizabeth Howell Goggin grants the property “…upon the condition that Kent County use the land for passive park use and education, conservation, wildlife and historic preservation…”

The Steps in the Oliver Evans Mill Process
(1) Grain was brought to the mill by wagon to the entrance
(2) After weighing each sack, the miller would dump the grain into the receiving hopper
(3) Grain flowed down the chute onto the elevator, filling empty cups on their way to the attic.
(4) The elevator belt dumped the cups of grain into the grain cleaner via a chute. The wire mesh grain cleaner filtered out dirt and seeds from the grain. A second apparatus, called a smutter, removed mold, fungus, and any remaining dirt.
(5) The grain then moved from the grain cleaner to the second floor into bins, directly above the millstones.
Marker detail: Section drawing of an Oliver Evans Mill image. Click for full size.
2. Marker detail: Section drawing of an Oliver Evans Mill
This simplified cross section reveals some of the inner workings of a mill equipped with the Oliver Evans system of machinery thought to be in use at the Howell Mill.

Drawing and "The Steps in the Oliver Evans Mill Process" text adapted from Theodore R. Hazen. Theodore R. Hazen is a Master Miller, Millwright, Millstone Dresser, Mill and Milling Consultant, and Molinological Specialist.
The grain traveled down through a control gate, from the bins on the second floor to the millstone hopper on the first floor.
(7) The grain was fed into the turning upper stone, called a runner stone. A device, called a damsel, turned the runner stone against the lower stationary stone (or bed stone) at about 125 revolutions per minute. Fed through the middle of the upper stone, the ground grain made a spiral path outward between the millstones.
(8) The ground grain, or meal, fell from the outside edges of the millstone down a chute to the basement. An elevator then carried the meal up to the attic to the outer edge of the hopper boy. The grain was cooled and dried by a turning rake in the hopper boy.
(9) Another chute brought the cool, dried meal from the hopper boy to the bolter on the second floor. Meal was sorted from flour (smallest-sized particles), to middling (medium-sized particles), to bran (or largest-sized particles).
(10) These sorted grains fell down different chutes to conveyors under the second floor, moving the grain into different produce bins on the first floor.
(11) The miller packed the flour into barrels and the middlings and

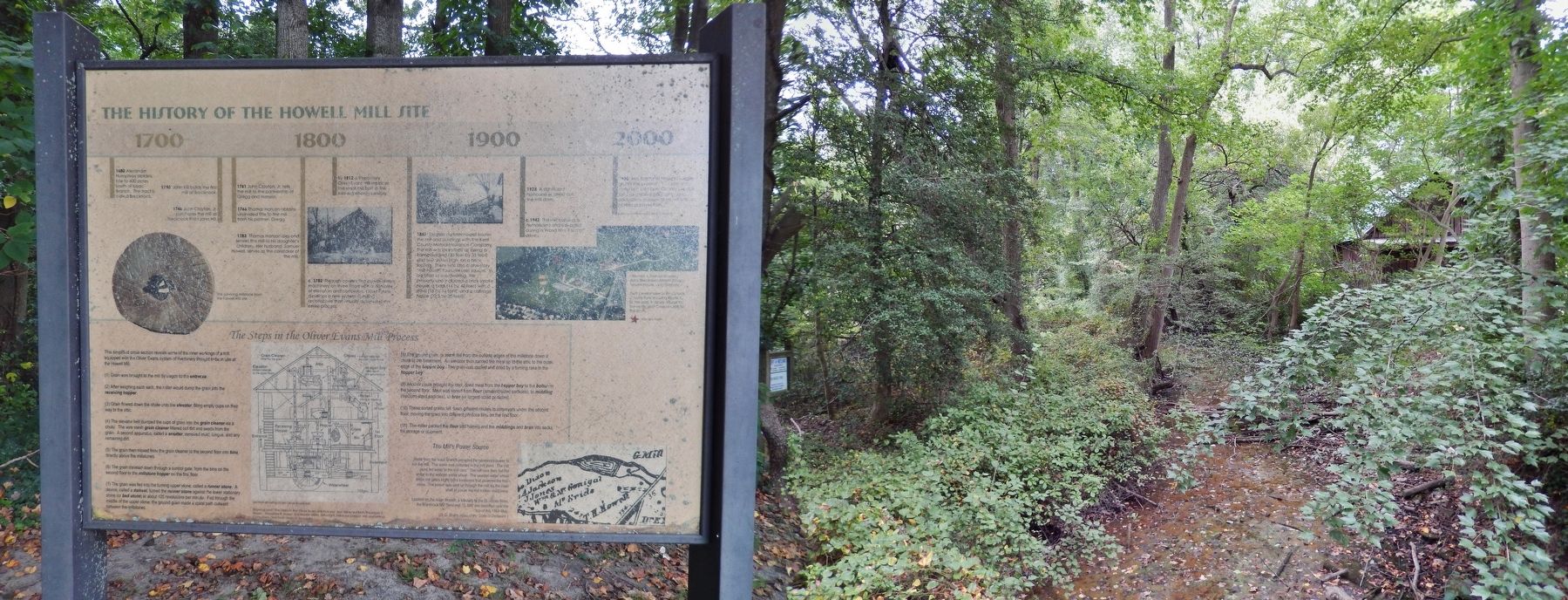

History of the Howell Mill Site Marker<br>(<i>wide view; mill site in background</i>) image. Click for full size.
Photographed By Cosmos Mariner, September 27, 2015
3. History of the Howell Mill Site Marker
(wide view; mill site in background)
bran into sacks for storage or shipment.

The Mill’s Power Source
Water from the Isaac Branch provided the necessary power to run the mill. The water was collected in the mill pond. The mill pond fed water to the mill race. The mill race then fed the water to the wooden water wheel. The wooden water wheel drove the gears in the mill’s basement that powered the millstone. The power was sent up through the mill via the main shaft to power the mill’s other machinery.

(photo captions)
• Barn, Brecknock Manor House, Tenant House, and Granary.
• Aerial view of Brecknock County Park showing Route 13 to the east, Rodney Village to the north, and Chapel Croft to the south.
• Located on the Isaac Branch, a tributary to the St. Jones River, the Brecknock Mill Pond and “G. Mill” are identified near the top of this 1868 map. (D. G. Beers, Atlas of the State of Delaware)
Topics. This historical marker is listed in these topic lists: Industry & CommerceParks & Recreational Areas.
Location. 39° 7.478′ N, 75° 32.15′ W. Marker is in Camden, Delaware, in Kent County. Marker can be reached from Old Camden Road (Alternate U.S. 13) 0.2 miles north of Chapel Drive (Caboose Road), on the left when traveling north.
Paid Advertisement
Click on the ad for more information.
Please report objectionable advertising to the Editor.
Marker is located at the Howell Mill site, on the Howell Mill trail in Brecknock County Park. Touch for map. Marker is at or near this postal address: 80 Old Camden Road, Camden Wyoming DE 19934, United States of America. Touch for directions.
Other nearby markers. At least 8 other markers are within walking distance of this marker. East Dover Hundred (approx. ¼ mile away); Brecknock (approx. ¼ mile away); Operation Silent Witness (approx. 0.4 miles away); Caesar Rodney (approx. half a mile away); Camden (approx. 0.8 miles away); a different marker also named Camden (approx. 0.8 miles away); Morning Star Institutional Church of God in Christ, Inc. (approx. 0.8 miles away); Gov. George Truitt Home (approx. 0.9 miles away). Touch for a list and map of all markers in Camden.
Related markers. Click here for a list of markers that are related to this marker. Howell Mill at Brecknock
Also see . . .  Schematic Layout of a Typical Oliver Evans Mill • How it All Works. (Submitted on April 13, 2019, by Cosmos Mariner of Cape Canaveral, Florida.)
Credits. This page was last revised on August 17, 2020. It was originally submitted on April 10, 2019, by Cosmos Mariner of Cape Canaveral, Florida. This page has been viewed 402 times since then and 40 times this year. Photos:   1, 2, 3. submitted on April 13, 2019, by Cosmos Mariner of Cape Canaveral, Florida.
