U.S. M109A3 155mm Self-Propelled Howitzer
Photographed by James Hulse, September 9, 2021

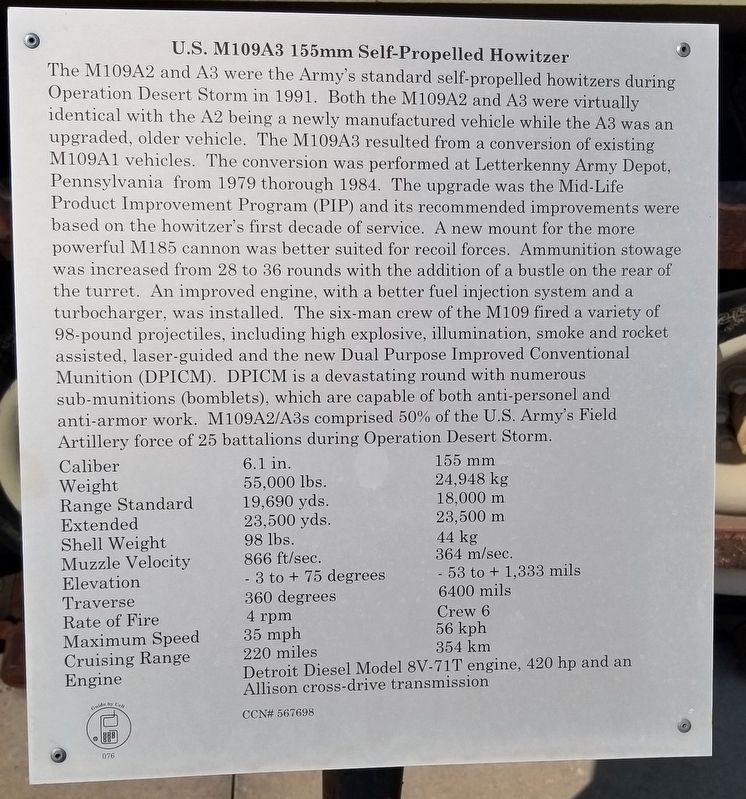

1. U.S. M109A3 155mm Self-Propelled Howitzer Marker
Inscription.
U.S. M109A3 155mm Self-Propelled Howitzer. . The M109A2 and A3 were the Army's standard self-propelled howitzers during Operation Desert Storm in 1991. Both the M109A2 and A3 were virtually identical with the A2 being a newly manufactured vehicle while the A3 was an upgraded, older vehicle. The M109A3 resulted from a conversion of existing M109A1 vehicles. The conversion was performed at Letterkenny Army Depot, Pennsylvania from 1979 thorough 1984. The upgrade was the Mid-Life Product Improvement Program (PIP) and its recommended improvements were based on the howitzer's first decade of service. A new mount for the more powerful M185 cannon was better suited for recoil forces. Ammunition stowage was increased from 28 to 36 rounds with the addition of a bustle on the rear of the turret. An improved engine, with a better fuel injection system and a turbocharger, was installed. The six-man crew of the M109 fired a variety of 98-pound projectiles, including high explosive, illumination, smoke and rocket assisted, laser-guided and the new Dual Purpose Improved Conventional Munition (DPICM). DPICM is a devastating round with numerous sub-munitions (bomblets), which are capable of both anti-personel and anti-armor work. M109A2/A3s comprised 50% of the U.S. Army's Field Artillery force of 25 battalions during Operation Desert Storm., Caliber - 6.1 in. - 155 mm , Weight - 55,000 lbs. - 24,948 kg , Range Standard - 19,690 yds. - 18,000 m , Extended - 23,500 yds. - 23,500 m , Shell Weight - 98 lbs. - 44 kg , Muzzle Velocity - 866 ft/sec. - 364 m/sec. , Elevation (-3 to +75 degrees) - (-53 to +1,333 mils) , Traverse - 360 degrees - 6400 mils , Rate of Fire - 4 rpm - Crew 6 , Maximum Speed - 35 mph - 56 kph , Cruising Range - 220 miles - 354 km , Engine - Detroit Diesel Model 8V-71T engine, 420 hp and an Allison cross-drive transmission , CCN# 567698
The M109A2 and A3 were the Army's standard self-propelled howitzers during Operation Desert Storm in 1991. Both the M109A2 and A3 were virtually identical with the A2 being a newly manufactured vehicle while the A3 was an upgraded, older vehicle. The M109A3 resulted from a conversion of existing M109A1 vehicles. The conversion was performed at Letterkenny Army Depot, Pennsylvania from 1979 thorough 1984. The upgrade was the Mid-Life Product Improvement Program (PIP) and its recommended improvements were based on the howitzer's first decade of service. A new mount for the more powerful M185 cannon was better suited for recoil forces. Ammunition stowage was increased from 28 to 36 rounds with the addition of a bustle on the rear of the turret. An improved engine, with a better fuel injection system and a turbocharger, was installed. The six-man crew of the M109 fired a variety of 98-pound projectiles, including high explosive, illumination, smoke and rocket assisted, laser-guided and the new Dual Purpose Improved Conventional Munition (DPICM). DPICM is a devastating round with numerous sub-munitions (bomblets), which are
Click or scan to see this page online
capable of both anti-personel and anti-armor work. M109A2/A3s comprised 50% of the U.S. Army's Field Artillery force of 25 battalions during Operation Desert Storm.
Caliber - 6.1 in. - 155 mm
Weight - 55,000 lbs. - 24,948 kg
Range Standard - 19,690 yds. - 18,000 m
Extended - 23,500 yds. - 23,500 m
Shell Weight - 98 lbs. - 44 kg
Muzzle Velocity - 866 ft/sec. - 364 m/sec.
Elevation (-3 to +75 degrees) - (-53 to +1,333 mils)
Traverse - 360 degrees - 6400 mils
Rate of Fire - 4 rpm - Crew 6
Maximum Speed - 35 mph - 56 kph
Cruising Range - 220 miles - 354 km
Engine - Detroit Diesel Model 8V-71T engine, 420 hp and an Allison cross-drive transmission
CCN# 567698
Erected by U.S. Army Field Artillery Museum. (Marker Number 076.)
Topics. This historical marker is listed in this topic list: War, 1st Iraq & Desert Storm. A significant historical year for this entry is 1991.
Location. 34° 40.025′ N, 98° 23.231′ W. Marker is in Fort Sill, Oklahoma, in Comanche County. It is at the intersection of Corral Road and Randolph Road, on the right when traveling west on Corral Road. The marker is located in the central section of Artillery
Photographed by James Hulse, September 9, 2021
2. The U.S. M109A3 155mm Self-Propelled Howitzer and Marker
Park at the U.S. Army Field Artillery Museum. Touch for map. Marker is in this post office area: Fort Sill OK 73503, United States of America. Touch for directions.
Regionally, this marker is in Oklahoma’s Kiowa Tribe, in the Comanche Nation, and in Southwest Oklahoma. It is also in the American South, specifically on the prairies, and on the Southern Plains. Globally, it is in North America, the Western Hemisphere, the Western World, and the Anglosphere. Historically, it finds itself in what was once New Spain, the Comancherνa, the territory of the Mississippian Culture, and the Louisiana Purchase.
More about this marker. Marker and Museum are located on Fort Sill, an active U.S. military installation. The museum is open to the public, but appropriate identification is required for access for Fort Sill.
