Mystic River Bascule Bridge

Built 1922

— Operated by the Connecticut Department of Transportation —

Mystic River Bascule Bridge Marker image. Click for full size.

Photographed by Cosmos Mariner, June 13, 2017

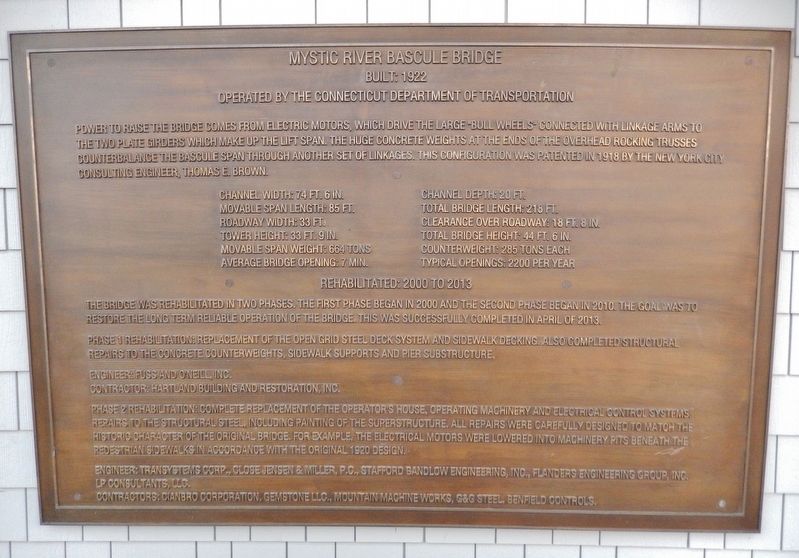

1. Mystic River Bascule Bridge Marker

Inscription.

Mystic River Bascule Bridge. Built 1922. , Power to raise the bridge comes from electric motors, which drive the large “Bull Wheels” connected with Linkage arms to the two plate girders which make up the lift span. The huge concrete weights at the ends of the overhead rocking trusses counterbalance the bascule span through another set of linkages. This configuration was patented in 1918 by the New York City Consulting Engineer, Thomas E. Brown. ,

Channel Width: 74 ft. 6 in. , Channel Depth: 20 ft. , Movable Span Length: 85 ft. , Total Bridge Length: 218 ft. , Roadway Width: 33 ft. , Clearance Over Roadway: 18 ft. 8 in. , Tower Height: 33 ft. 9 in. , Total Bridge Height 44 ft. 6 in. , Movable Span Weight: 664 tons , Counterweight: 285 tons each , Average Bridge Opening: 7 min. , Typical Openings: 2200 per year

, Rehabilitated 2000 to 2013 , The bridge was rehabilitated in two phases. The first phase began in 2000 and the second phase began in 2010. The goal was to restore the long term reliable operation of the bridge. This was successfully completed in April of 2013. , Phase 1 Rehabilitation: replacement of the open grid steel deck system and sidewalk decking. Also completed structural repairs to the concrete counterweights, sidewalk supports and pier substructure. , Engineer: Fuss and O’Neil, Inc. , Phase 2 Rehabilitation: Complete replacement of the operator’s house, operating machinery and electrical control systems. Repairs to the structural steel, including painting of the superstructure. All repairs were carefully designed to match the historic character of the original bridge. For example, the electric motors were lowered into machinery pits beneath the pedestrian sidewalks in accordance with the original 1920 design. , Engineer: Transystems Corp., Close, Jensen and Miller, P.C., Stafford Bandlow Engineering, Inc., Flanders Engineering Group, Inc., LP Consultants, LLC. , Contractors: Cianbro Corporation, Gemstone LLC., Mountain Machine Works, G&G Steel, Benfield Controls.

Power to raise the bridge comes from electric motors, which drive the large “Bull Wheels” connected with Linkage arms to the two plate girders which make up the lift span. The huge concrete weights at the ends of the overhead rocking trusses counterbalance the bascule span through another set of linkages. This configuration was patented in 1918 by the New York City Consulting Engineer, Thomas E. Brown.

Channel Width: 74 ft. 6 in.
Channel Depth: 20 ft.
Movable Span Length: 85 ft.
Total Bridge Length: 218 ft.
Roadway Width: 33 ft.
Clearance Over Roadway: 18 ft. 8 in.
Tower Height: 33 ft. 9 in.
Total Bridge Height 44 ft. 6 in.
Movable Span Weight: 664 tons
Counterweight: 285 tons each
Average Bridge Opening: 7 min.
Typical Openings: 2200 per year

Rehabilitated 2000 to 2013
The bridge was rehabilitated in two phases. The first phase began in 2000 and the second phase began in 2010. The goal was to restore the long term reliable operation of the bridge. This was successfully completed in April of 2013.

Phase 1 Rehabilitation: replacement of the open grid steel deck system and sidewalk decking.

Paid Advertisement

Click or scan to see
this page online

Also completed structural repairs to the concrete counterweights, sidewalk supports and pier substructure.

Engineer: Fuss and O’Neil, Inc.

Phase 2 Rehabilitation: Complete replacement of the operator’s house, operating machinery and electrical control systems. Repairs to the structural steel, including painting of the superstructure. All repairs were carefully designed to match the historic character of the original bridge. For example, the electric motors were lowered into machinery pits beneath the pedestrian sidewalks in accordance with the original 1920 design.

Engineer: Transystems Corp., Close, Jensen & Miller, P.C., Stafford Bandlow Engineering, Inc., Flanders Engineering Group, Inc., LP Consultants, LLC.

Contractors: Cianbro Corporation, Gemstone LLC., Mountain Machine Works, G&G Steel, Benfield Controls.

Erected by Connecticut Department of Transportation.

Topics. This historical marker is listed in these topic lists: Bridges & Viaducts • Waterways & Vessels. A significant historical year for this entry is 1922.

Location. 41° 21.281′ N, 71° 58.135′ W. Marker is in Groton in Southeastern Region, Connecticut.

Mystic River Bascule Bridge Marker (<i>wide view</i>) image. Click for full size.

Photographed by Cosmos Mariner, June 12, 2017

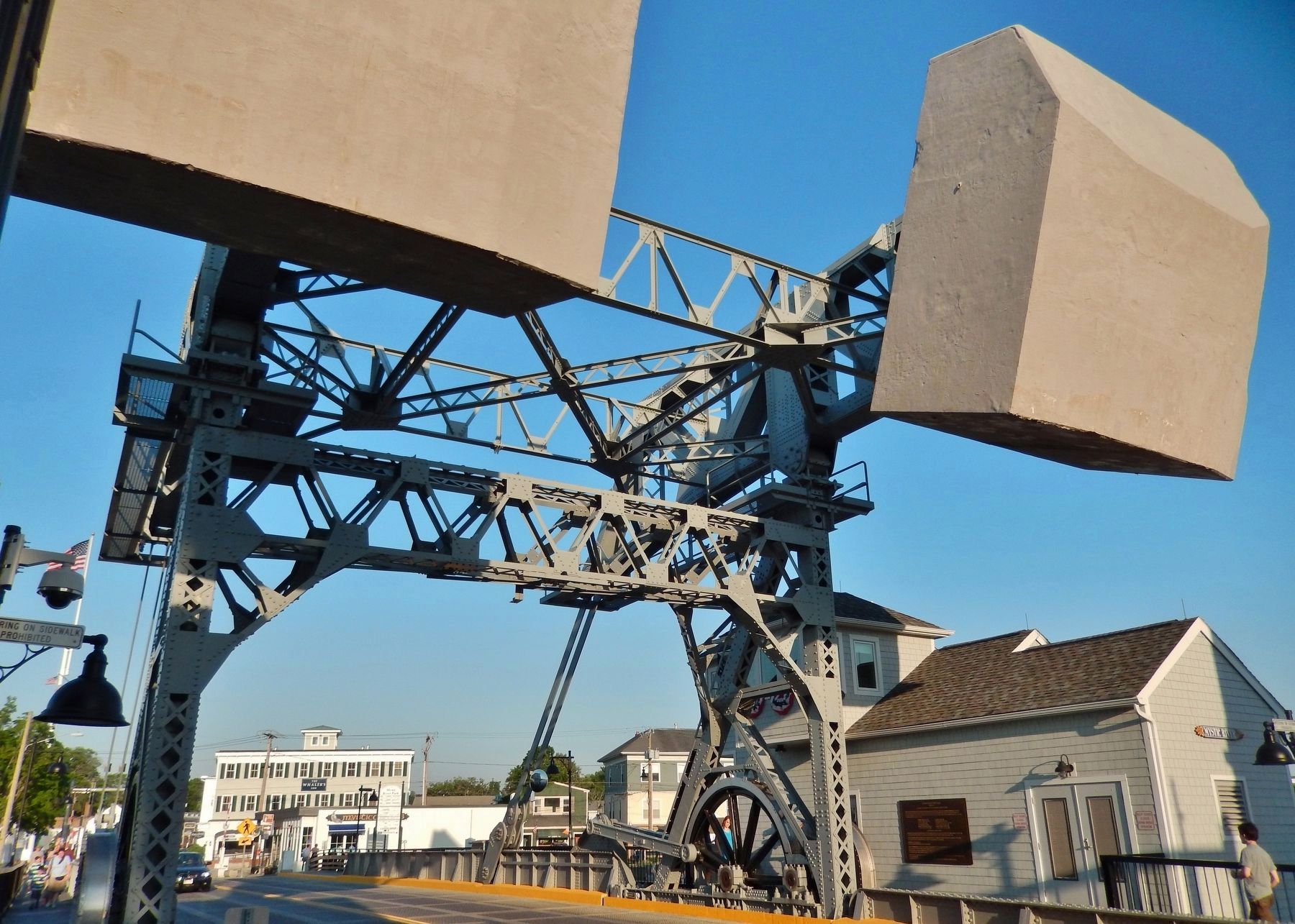

2. Mystic River Bascule Bridge Marker (wide view)

Marker is visible beside the walkway on the Operator's House wall. The two 285 ton counter weights seen here in "bridge open" or "down" position.

It is in Mystic. It is on West Main Street (U.S. 1) east of Gravel Street, on the right when traveling east. Marker is a large metal plaque mounted at eye level, directly on the Bridge Operator's House, beside the pedestrian walkway, on the north side of the bridge. Touch for map. Marker is at or near this postal address: 1 West Main Street, Mystic CT 06355, United States of America. Touch for directions.

Regionally, this marker is on the Connecticut Shoreline,

in Greater New London, in Mystic and the Eastern Shore,

and in the Thames River Valley.

It is also in the American Northeast,

in New England,

and on the Eastern Seaboard. Globally, it is in the North Atlantic Region,

North America,

the Western Hemisphere,

the Western World,

and the Anglosphere.

Historically, it finds itself in what was once New London County

and also one of the original Thirteen Colonies.

Other nearby markers. At least 8 other markers are within walking distance of this marker: A View From the Mystic River Bridge (here, next to this marker); At This Crossing (a few steps from this marker); Mystic Civil War Memorial (approx. 0.3 miles away); Hays & Ros Clark Shiplift

Bridge Construction Plaque and Bull Wheel image. Click for full size.

Photographed by Cosmos Mariner, June 12, 2017

3. Bridge Construction Plaque and Bull Wheel

Mystic River Bridge
built by
Connecticut State Highway Department
Charles J. Bennett, Commissioner
Richard L. Saunders, Deputy, Arthur W. Bushell, Division Engineer

The Towns of
Croton and Stonington
Selectmen
Louis P. Allyn
Fred Holdsworth
Clark B. Whaley
John Fribance
Conrad Kretzer
Lawrence C. Purthill

Contractors
The J.E. Fitzgerald Company
American Bridge Company
1922

(approx. 0.3 miles away); Eastern-rig dragger Roann (approx. 0.3 miles away); The Hays and Ros Clark Shiplift (approx. 0.3 miles away); Sandbagger Annie (approx. 0.4 miles away); Susan Constant (approx. 0.4 miles away). Touch for a list and map of all markers in Groton.

Another marker is no longer nearby. Whaleship Charles W. Morgan (was approx. 0.3 miles away but has been replaced with another marker now near it).

Regarding Mystic River Bascule Bridge. The bridge carries US Highway 1, (known locally as Main Street), across the Mystic River, linking the east and west sides of Mystic, Connecticut.
Few bridges are as much fun to watch in operation as the Route 1 bridge in Mystic, because unlike many bascules, its mechanical parts are all out in the open. Besides being economical to build, the design had many advantages: accessibility of major parts for maintenance, automatic braking of the bridge at the top of its movement, latitude for imprecise motor control, and distribution of the bridge and counterweight forces onto separate piers.

Also see . . . Mystic River Bascule Bridge.
The Strauss Heel-trunnion

Mystic River Bridge (<i>Operator's House</i>) image. Click for full size.

Photographed by Cosmos Mariner, June 12, 2017

4. Mystic River Bridge (Operator's House)

type bridge was designed by former Otis Elevator Company Chief Engineer Thomas Ellis Brown of New York and built in 1920 by the J. E. FitzGerald Construction Company of New London, Connecticut.
Wikipedia entry. (Submitted on March 11, 2018, by Cosmos Mariner of Cape Canaveral, Florida.)

Mystic River Bridge (<i>"Bull Wheels" and superstructure</i>) image. Click for full size.

Photographed by Cosmos Mariner, June 13, 2017

5. Mystic River Bridge ("Bull Wheels" and superstructure)

Mystic River Bridge - US Highway 1 (Main Street) - looking west across the bridge deck image. Click for full size.

Photographed by Cosmos Mariner, June 13, 2017

6. Mystic River Bridge - US Highway 1 (Main Street) - looking west across the bridge deck
