Geology Complicates Bridge Foundation

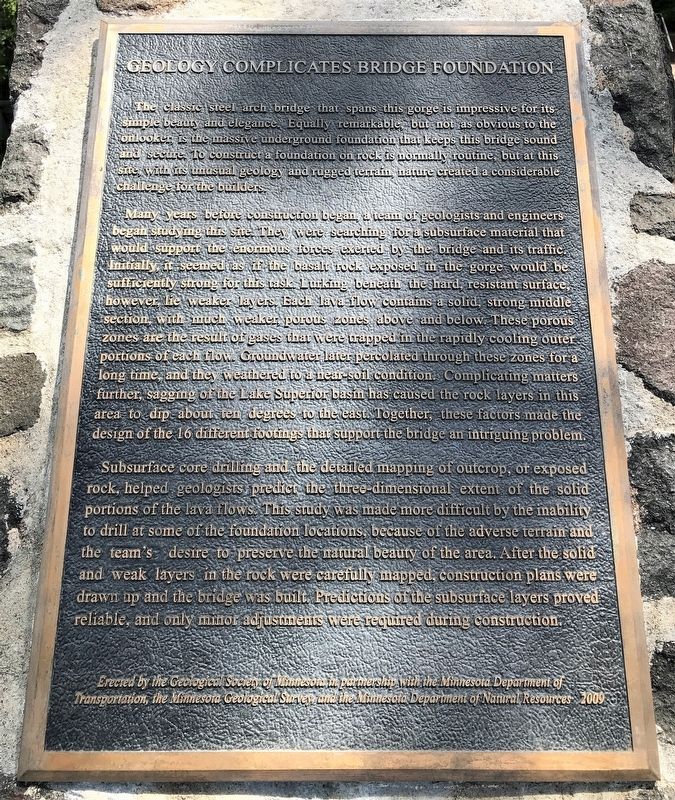

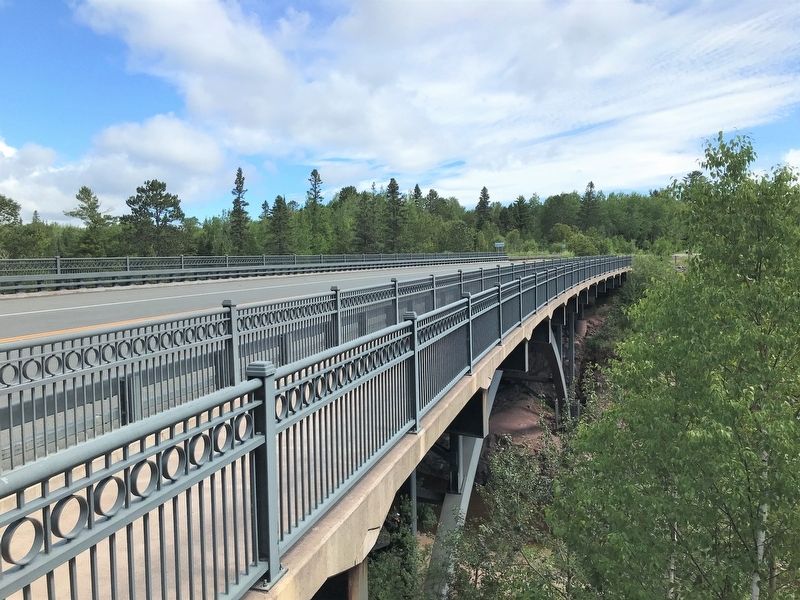

Geology Complicates Bridge Foundation. . The classic steel arch bridge that spans this gorge is impressive for its simple beauty and elegance. Equally remarkable, but not as obvious to the onlooker, is the massive underground foundation that keeps this bridge sound and secure. To construct a foundation on rock is normally routine, but at this site, with its unusual geology and rugged terrain, nature created a considerable challenged for the builders., Many years before construction began, a team of geologists and engineers began studying this site. They were searching for a subsurface material that would support the enormous forces exerted by the bridge and its traffic. Initially, it seemed as if the basalt rock exposed in the gorge would be sufficiently strong for this task. Lurking beneath the hard, resistant surface, however, lie weaker layers. Each lava flow contains a solid, strong middle section, with much weaker, porous zones above and below. These porous zones are the result of gases that were trapped in the rapidly cooling outer portions of each flow. Groundwater later percolated through these zones for a long time, and they weathered to a near-soil condition. Complicating matters further, sagging of the Lake Superior basin has caused the rock layers in this area to dip about ten degrees to the east. Together, these factors made the design of the 16 different footings that support the bridge an intriguing problem., Subsurface core drilling and the detailed mapping of outcrop, or exposed rock, helped geologists predict the three-dimensional extent of the solid portions of the lava flows. This study was made more difficult by the inability to drill at some of the foundation locations, because of the adverse terrain and the team's desire to preserve the natural beauty of the area. After the solid and weak layers in the rock were carefully mapped, construction plans were drawn up and the bridge was built. Predictions of the subsurface layers proved reliable, and only minor adjustments were required during construction.
