Fort Trumbull in New London in New London County, Connecticut — The American Northeast (New England)


“The Arches”

Submarine Antenna Over-Water Arch Facility

— Building 101 —

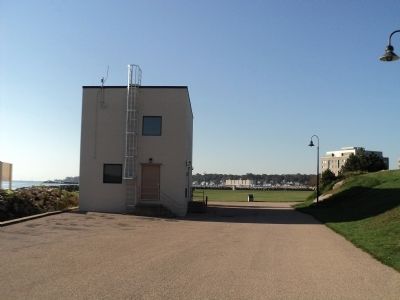

“The Arches” Marker image. Click for full size.
Photographed By Bill Coughlin, October 9, 2011
1. “The Arches” Marker
Inscription.
This unusual structure was specifically designed to test submarine antennas in an environment that replicated conditions at sea. The roof contained a 93-by-66 foot concrete pool filled with seawater. The pool was six inches deep except for a well in the center that was about eighteen feet deep. Researchers conducted tests and collected data in a control room under the pool. The three tall overhead arches were made of wood to minimize radio-frequency reflections, which could cause errors in measurement.

Tests conducted here determined how well a submarine radio system would perform when communicating with satellites or the shore. During a test, an antenna was installed in the well of the pool. This simulated the conditions of a submarine at sea. A transmitting antenna mounted on a carriage moved up the middle arch, simulating different locations, from the horizon to directly overhead. Researchers could measure radio frequency signals generated between the two antennas to determine how well the submarine antenna functioned.

The two side arches were for support only. When the structure was dismantled in 1997, these side arches were reused in Newport, Rhode Island, for a new antenna over-water test facility at the Naval Undersea Warfare Center.

Erected by Fort Trumbull State Park
Paid Advertisement
Click on the ad for more information.
Please report objectionable advertising to the Editor.
Click or scan to see
this page online
.

Topics. This historical marker is listed in these topic lists: CommunicationsScience & MedicineWaterways & Vessels. A significant historical year for this entry is 1997.

Location. 41° 20.574′ N, 72° 5.561′ W. Marker is in New London, Connecticut, in New London County. It is in Fort Trumbull. Marker can be reached from East Street, on the left when traveling south. Marker is at Fort Trumbull State Park. Touch for map. Marker is in this post office area: New London CT 06320, United States of America. Touch for directions.

Other nearby markers. At least 8 other markers are within walking distance of this marker. Magnetic Silencing (within shouting distance of this marker); Periscope Test Facility (within shouting distance of this marker); Civil War (about 300 feet away, measured in a direct line); The Third System (about 300 feet away); Coast Guard (about 300 feet away); Post Civil War to 1910 (about 300 feet away); War of 1812 (about 300 feet away); American Revolution (about 300 feet away). Touch for a list and map of all markers in New London.

More about this marker. A photo of the antenna facility appears at the lower left of the marker and has a caption of “The soaring arches were a prominent feature on the New London waterfront in the 1980s and 1990s. The periscope test facility can be seen on the right. Photo courtesy of the Naval

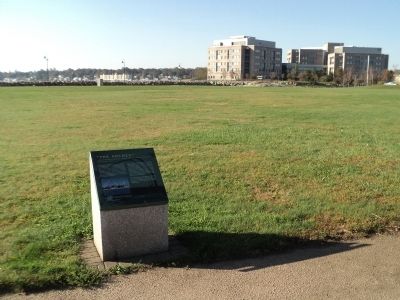

“The Arches” Marker image. Click for full size.
Photographed By Bill Coughlin, October 9, 2011
2. “The Arches” Marker
Undersea Warfare Center.”

Also see . . .  History of Fort Trumbull. Friends of Fort Trumbull (Submitted on October 16, 2011, by Bill Coughlin of Woodland Park, New Jersey.)

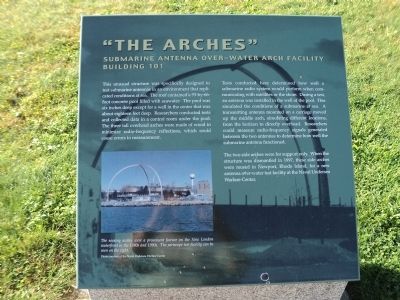

“The Arches” Marker image. Click for full size.
Photographed By Bill Coughlin, October 9, 2011
3. “The Arches” Marker
Marker at Fort Trumbull State Park image. Click for full size.
Photographed By Bill Coughlin, October 9, 2011
4. Marker at Fort Trumbull State Park
The marker is seen here on the right side of the walkway near the waterfront in Fort Trumbull State Park.
